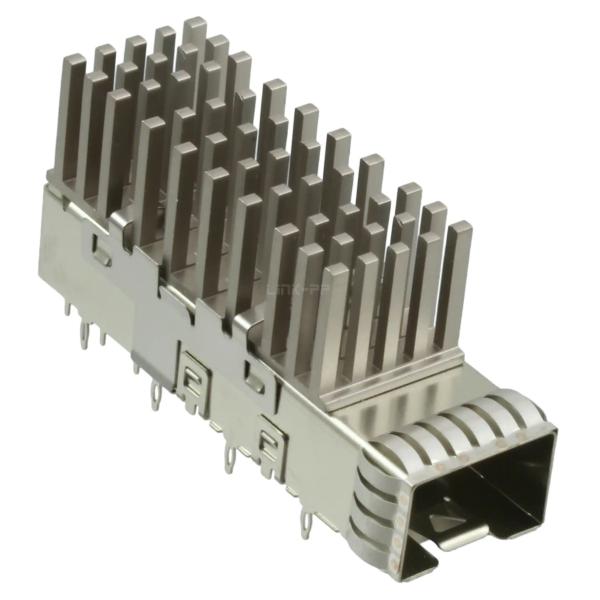

TE 2007464-3 SFP+ Cage With Heat Sink Connector Press-Fit Through Hole Right Angle

Product Categories

Shenzhen LINK-PP INT'L Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: TE 20074643 SFP Cage With Heat Sink Connector PressFit Through Hole Right Angle
Brand: LINK-PP
Price: 1 USD

Brand Name : LINK-PP

Model Number : 2007464-3

Certification : UL,ROHS,Reach,ISO

Place of Origin : Guangdong,China

Compatible : TE

Competitor P/N : 2007464-3

Manufacturer : LINK-PP

Pluggable I/O Product Type : Cage Assembly with Integrated Connector

Data Rate (Max) (Gb/s) : 16

EMI Containment Feature Type : Elastomeric Gasket

Lightpipe Options : Not Optional

Termination Method to Printed Circuit Board : Through Hole - Press-Fit

Operating Temperature Range (°C) : -55 – 85

Contact Now

SFP+ , Cage Assembly, Data Rate (Max) 16 Gb/s, External Springs, SFP+, 1 x 1, Pin, Heat Sink Height 13.5 mm [.531 in]

LINK-PP Part Number:	-	TE Part Number	2007464-3
Connector Style	Cage with Heat Sink	Connector Type	zSFP+
Product Status	Active	Mounting Type	Through Hole, Right Angle
Termination	Press-Fit	Features	EMI Shielded
Port Matrix Configuration	1x1 Ports	Number of Ports	1
Number of Rear EONs per Port Column	-	Data Rate (Max)(Gb/s)	16
Operating Temperature Range	-55 – 105°C	Pluggable I/O Applications	SFP+ Stacked Belly-to-Belly
Circuit Application	Signal	EMI Containment Feature Type	Elastomeric Gasket
Included Lightpipe	NO	Cage Material	Nickel Silver Alloy
PCB Thickness (Recommended)	2.25mm[.089in]	Tail Length	2.05mm[.081in]
