LPJE160GFNL 1X1 Port RJ45 Modular Jack Without Magnetics Tab Down Green/Green Led

Name: LPJE160GFNL 1X1 Port RJ45 Modular Jack Without Magnetics Tab Down GreenGreen Led
Brand: LINK-PP
Price: 1 USD

LPJE160GFNL 1X1 Port RJ45 Modular Jack Without Magnetics Tab Down Green/Green Led Manufactures

Brand Name : LINK-PP

Model Number : LPJE160GFNL

Certification : UL,ROHS,Reach,ISO

Place of Origin : Guangdong,China

LINK-PP P/N : LPJE160GFNL

Manufacturer : LINK-PP

Compatible Brands : LINK-PP

Latch : Down

Pin Type : THT SOLDER

LED Option : Green/Green

Shield EMI Tabs : YES

Temperature : -40℃ to +85℃

Number of Ports : 1x1 Port

Reviews : 50

Contact Now

LINK-PP LPJE160GFNL RJ45 Modular Jack without Integrated Magnetics for router and Switch(1X1 Port, Tab Down ,Green/Green Led)

The LPJE160GFNL supports speed 10/100/1000Base-T, it is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001, ISO14001 standards. It can be used to support application, such as Intercom,Industrial PC, router and Switch.

LINK-PP Part Number:	LPJE160GFNL	Connector Type	Jack
Part Status	Active	Mounting Type	Through Hole
Number of Positions/Contacts	8p8c (RJ45, Ethernet)	Application-Lan	-
Number of Ports	1x1 Port	Speed	-
Latch	Down	Cores per Port	-
Orientation	90° Angle (Right)	PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	With	LED Option	Green/Green Led
PCB	FR4	PCB Retaining Post	T POST
Package Height (Inches/mm)	0.537/13.65	Package Length (Inches/mm)	0.837/21.27
Package Width (Inches/mm)	0.625/15.88	Temperature	-40℃ TO 85℃
Bst Circuit	Yes	AutomDX	YES
Diodes	No	Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT	Configuration RX/TX	T,C

Product Tags:

LPJE160GFNL

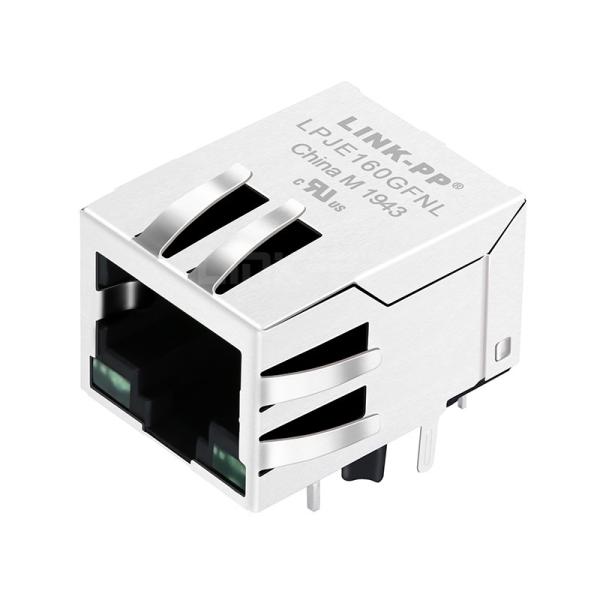

LPJE160GFNL 1X1 Port RJ45 Modular Jack Without Magnetics Tab Down Green/Green Led Images
