WE 7498010210A Compatible LINK-PP LPJ3011ABNL SMD RJ45 Jack With 10/100 Base-T Integrated Magnetics Tab Up Green/Yellow Led

Name: WE 7498010210A Compatible LINKPP LPJ3011ABNL SMD RJ45 Jack With 10100 BaseT Integrated Magnetics Tab Up GreenYellow Led
Brand: LINK-PP
Price: 1 USD

WE 7498010210A Compatible LINK-PP LPJ3011ABNL SMD RJ45 Jack With 10/100 Base-T Integrated Magnetics Tab Up Green/Yellow Led Manufactures

Brand Name : LINK-PP

Model Number : LPJ3011ABNL

Certification : UL,ROHS,Reach,ISO

Place of Origin : Guangdong,China

Compatible : WE

Competitor P/N : 7498010210A

Compatible Brands : WE

Latch : Up

Shield EMI Tabs : YES

LED Option : Green/Yellow

Temperature : 0℃ to 70℃

Application - LAN : ETHERNET (NON PoE)

Questions : 1

Reviews : 88

N.W/pcs : 0.011kg

Package : Tray

SPQ : 110pcs

Qty/carton : 660pcs

Carton size : 36*36*35cm

G.W/carton : 7.4kg

Contact Now

WE 7498010210A Compatible LINK-PP LPJ3011ABNL 10/100 Base-T SMT RJ45 Magnetics Jack for Set-top Box and Server (Tab Up, Green/Yellow Led)

The LPJ3011ABNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Fieldbus System, Embedded Main Board, Smart Meters and Server.

LINK-PP Part Number:	LPJ3011ABNL	WE Part Number	7498010210A
Part Status	Active	Connector Type	Jack
Number of Positions/Contacts	8p8c (RJ45, Ethernet)	Application-Lan	Ethernet(NoN PoE)
Number of Ports	1x1 Port	Speed	10/100 Base-T
Latch	Up	Cores per Port	4
Orientation	90° Angle (Right)	PCB Mount Angle	Surface Mount
Shield EMI Tabs	With	LED Option	Green/Yellow
PCB	FR4	PCB Retaining Post	T POST
Package Height (Inches/mm)	0.536/13.61	Package Length (Inches/mm)	1.00/25.40
Package Width (Inches/mm)	0.634/16.10	Temperature	0℃ TO 70℃
Bst Circuit	Yes	AutomDX	YES
Diodes	No	Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT	Configuration RX/TX	T,C

Product Tags:

LPJ3011ABNL

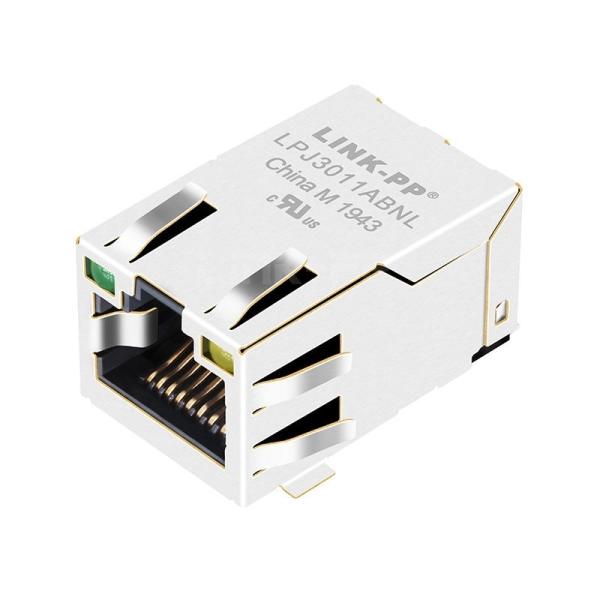

WE 7498010210A Compatible LINK-PP LPJ3011ABNL SMD RJ45 Jack With 10/100 Base-T Integrated Magnetics Tab Up Green/Yellow Led Images
