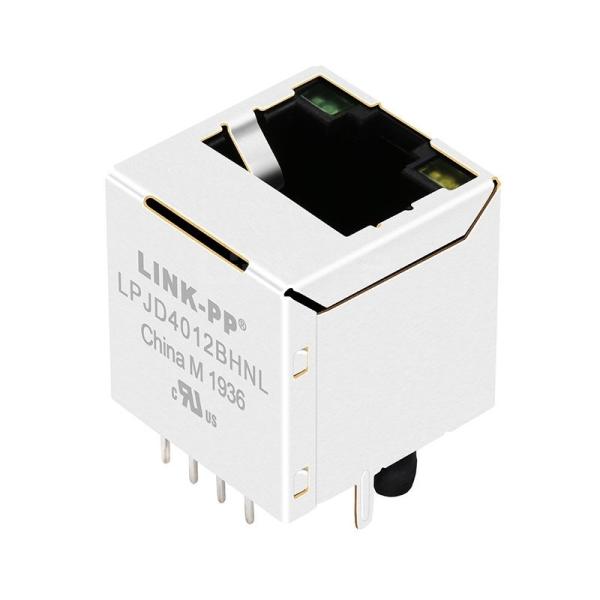

Amphenol LMJ2138814S0L1T1C Compatible LINK-PP LPJD4012BHNL 10/100 Base-T Vertical RJ45 Magjack Green&Yellow LED

Brand Name : LINK-PP

Model Number : LPJD4012BHNL

Certification : UL,ROHS,Reach,ISO

Place of Origin : Guangdong,China

Compatible : Amphenol

Competitor P/N : LMJ2138814S0L1T1C

Compatible Brands : Amphenol

LED Option : Green/Yellow

Shield EMI Tabs : NO

Temperature : -40℃ to +85℃

Application - LAN : ETHERNET (NON PoE)

Questions : 1

Reviews : 117

N.W/pcs : 0.008kg

Package : Tray

SPQ : 50pcs

Qty/carton : 1200pcs

Carton size : 32*30*31cm

G.W/carton : 9kg

Contact Now

Amphenol LMJ2138814S0L1T1C Compatible LINK-PP LPJD4012BHNL 10/100 Base-TVertical RJ45 Magjack For SMPS ( Top entry Green&Yellow LED )


The LPJD4012BHNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Industrial PC, Machine Inverter,Router.


LINK-PP Part Number:
 LPJD4012BHNL Amphenol Part Number LMJ2138814S0L1T1C
Part Status
 Active Connector Type
 Jack
Number of Positions/Contacts
 10p8c (RJ45, Ethernet) Application-Lan
 Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
UpCores per Port
4
Orientation
180° Angle (Right)PCB Mount Angle

THT Solder

Shield EMI Tabs
WithoutLED Option

Green/Yellow

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.657/16.70Package Length (Inches/mm)

0.665/16.90

Package Width (Inches/mm)
0.636/16.15
Temperature
-40℃ TO 85℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C
