LPJG17561BGNL 100/1000 Base-T Yellow/Green LED 2X1 Port RJ45 Female Connectors

Name: LPJG17561BGNL 1001000 BaseT YellowGreen LED 2X1 Port RJ45 Female Connectors
Brand: LINK-PP
Price: 1 USD

LPJG17561BGNL 100/1000 Base-T Yellow/Green LED 2X1 Port RJ45 Female Connectors Manufactures

Brand Name : LINK-PP

Model Number : LPJG17561BGNL

Certification : UL,ROHS,Reach,ISO

Place of Origin : Guangdong,China

LINK-PP P/N : LPJG17561BGNL

Manufacturer : LINK-PP

Speed : 1000 Base-T

Compatible Brands : LINK-PP

Application - LAN : ETHERNET (NON PoE)

Shield EMI Tabs : NO

Pin Type : THT SOLDER

LED Option : Yellow/Green

Temperature : -40℃ to +85℃

Reviews : 69

N.W/pcs : 0.02kg

Package : Tray

SPQ : 30pcs

Qty/carton : 540pcs

Carton size : 37*30*30cm

G.W/carton : 11kg

Contact Now

LINK-PP LPJG17561BGNL 100/1000 Base-T RJ45 Female Connector for Intercom and Ethernet Control (2x1 Port,Yellow/Green LED)

The LPJG17561BGNL supports speed 10/100/1000 Base-T, it is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001, ISO14001 standards. It can be used to support application, such as Intercom,Optical Terminal,Embedded Main Board and Ethernet Control.

LINK-PP Part Number:	LPJG17561BGNL	Connector Type	Jack
Part Status	Active	Mounting Type	Through Hole
Number of Positions/Contacts	10p8c (RJ45, Ethernet)	Application-Lan	Ethernet(NoN PoE)
Number of Ports	2x1 Port	Speed	10/100/1000 Base-T
Latch	Both	Cores per Port	8
Orientation	90° Angle (Right)	PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	Without	LED Option	Yellow/Green
PCB	FR4	PCB Retaining Post	T POST
Package Height (Inches/mm)	0.996/25.29	Package Length (Inches/mm)	1.118/28.40
Package Width (Inches/mm)	0.675/17.15	Temperature	-40℃ TO +85℃
Bst Circuit	Yes	AutomDX	YES
Diodes	No	Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT	Configuration RX/TX	T,C

Product Tags:

LPJG17561BGNL

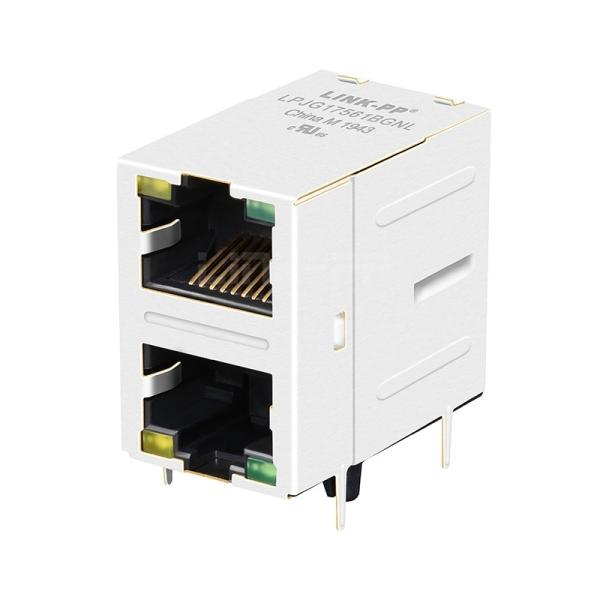

LPJG17561BGNL 100/1000 Base-T Yellow/Green LED 2X1 Port RJ45 Female Connectors Images
